SELF PRIMING MINI MONOBLOCKS
  •  Description
  •  Application

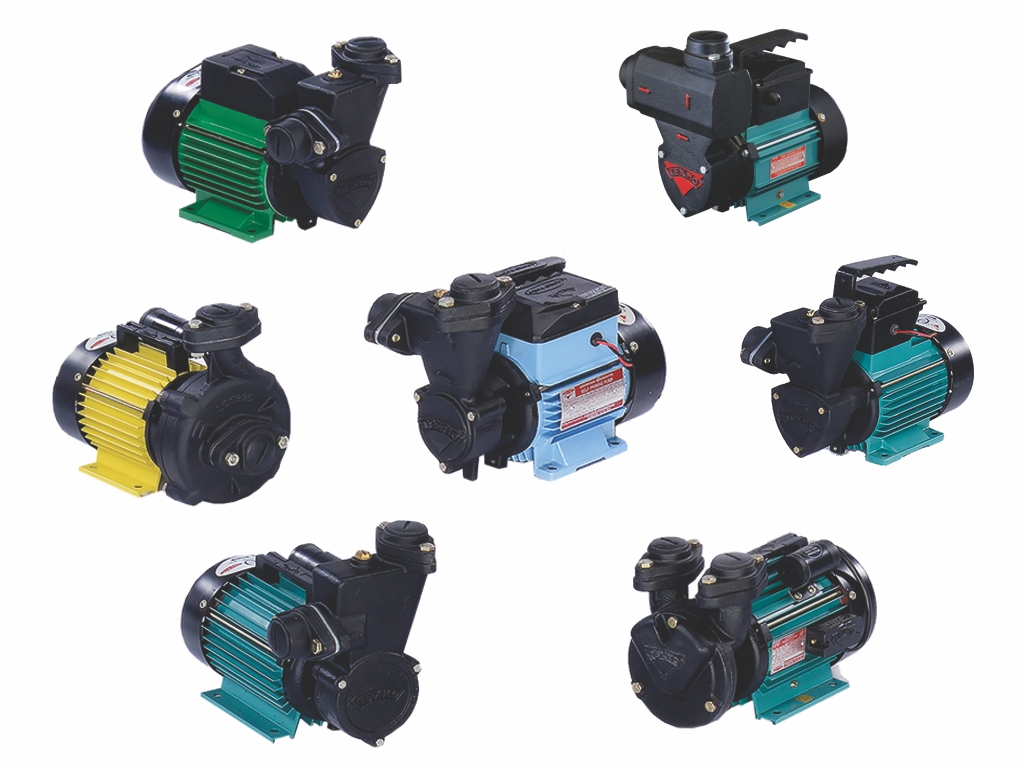

TEXMO SINGLE PHASE SELF PRIMING MINI-MONOBLOCK Pumps are rugged in construction and efficient. They are manufactured with stringent quality control at all stages to provide higher efficiency and reliability


 POWER RANGE 0.5 TO 1.0 HP
 HEAD Maximum 56 Meters

  • * Domestic water supply
  • * Water transfer from underground sump to overhead tanks in Residential houses and Apartments
  • * Domestic Pressure Boosting
  • * High pressure curing water supply at construction sites
  • * Lawn and Garden watering
  • * Suitable for portable application

  •  Description
  •  Application

TEXMO Single phase Self priming Pumps are side channel centripetal pumps. They are convenient, rugged and reliable pumps for the household, they have proven their performance over many decades. This pump has got good self priming action even with air entrapped.

 POWER RANGE0.5 TO 1.0 HP
 SPEED 1420 RPM
 HEAD MAXIMUN 36 M

  • * All applications requiring Self priming action up to 8 meters
  • * Overhead storage water- tank filling
  • * Car washing
  • * Water supply to commercial establishments like Hotels, Lodges and Hospitals
  • * Gardening and small farm Irrigations
  • * Home Pressure Boosting Applications
  • * Filter point pumping

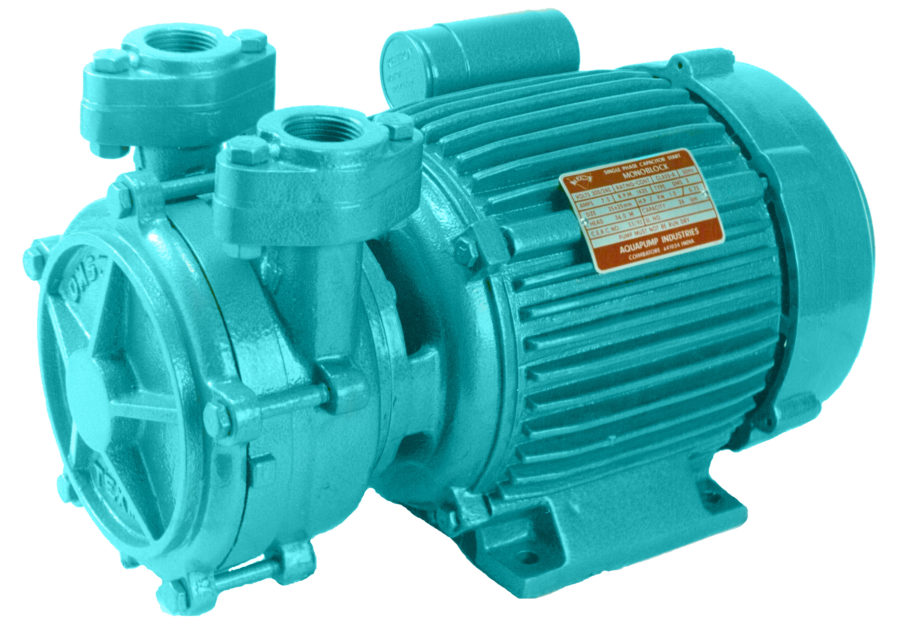

SLOW SPEED SELF PRIMING MONOBLOCK PUMPS (DMS)

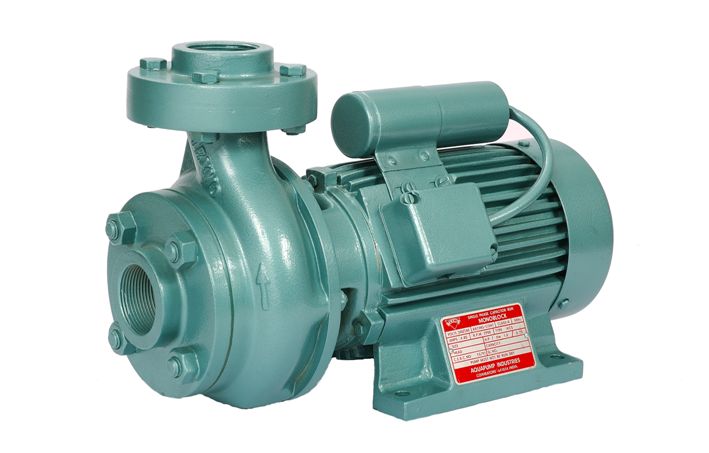

HCS
  •  Description
  •  Application

TEXMO Single phase Centrifugal Monoblock Pumpsets are Convenient, rugged and efficient these monoblocks are ideal where the water requirement is fairly high.


 POWER RANGE0.5 TO 1.0 HP
 SPEED 2900 RPM
 HEAD MAXIMUN 33 M

  • * Overhead storage water- tank filling
  • * Water supply to commercial establishments like Hotels, Lodges and Hospitals
  • * Gardening and small farm irrigations
  • * Home Pressure boosting Applications
  • * Portable small – farm irrigation

  •  Description
  •  Application

AQUATEX Single phase Monoblocks are Rugged and efficient, these pumpsets are ideal where water requirements are substantial, namely small farms and factories where only single phase power is available.


 POWER RANGE1.5 TO 5.0 HP
 SPEED2900 RPM
 HEADMAXIMUM 42 M

  • * Irrigation for small farms
  • * Pressure boosting and high head requirements
  • * Garden Irrigation
  • * Water supply for commercial establishments,hotels, lodgings
  • * Water supply to residential apartments

ACS
JET PUMPS (TVJ / THJ)
  •  Description
  •  Application

TEXMO Jet Monoblocks are capable of pumping water from bore wells and open-wells and offer a economical alternative to Submersible Pumps. They are available in both “Side-suction” and “Bottom- suction” models.


PARTICULARSDETAILS
THJTVJ / TVJ NTVJ2S
Bore size min3``/ 4`` / 4.5`` and above
Power Range1.0 HP to 1.5 HP0.5 HP to 2.0 HP1.0 HP to 2.0 HP
Voltage Range180V- 240V, 50Hz, AC Single phase
Motor typeCapacitor run type motor TEFC type
Speed2900 RPM
Suction LiftMaximum 50 MMaximum 61 MMaximum 77 M
DischargeMaximum 2383 LPHMaximum 2500 LPHMaximum 1200 LPH
MountingHorizontalVerticalVertical
Operating PressureMaximum 10 barMaximum 15 barMaximum 15 bar
No. of stagesOneOneTwo


  • * Pumping water from well / bores where suction depth exceeds 30 feet
  • * Operates up to 250 feet of water level .
  • * Water supply to commercial establishments like Hotels, Lodges and Hospitals
  • * Water supply to commercial establishments like Hotels, Lodges and Hospitals
  • * In case of collapsible bore, Jet pump will be better option since pump set is erected outside it will not stuck in the bore.

  •  Description
  •  Application

AQUATEX Monoblock pumps are rugged, reliable and are built to withstand tough conditions like low voltages and high suction lifts. A very wide range of monoblocks to suit a variety of operating points are available.


 POWER RANGE1.5 TO 30.0 HP
 SPEED2900 RPM
 HEADMAXIMUM 95 M
 DISCHARGEMAXIMUM 2600 LPM

  • * Deep or shallow open well pumping with suction lift
  • * River and canal lift irrigation pumping
  • * Sprinkler and drip Irrigation systems
  • * Filter point pumping
  • * Industrial water supply and transfer
  • * Cooling water circulating systems
  • * Pressure boosting systems

MONOBLOCKS – HIGH SPEED (AMH)
MONOBLOCKS -SLOW SPEED (AMS )
  •  Description
  •  Application

AQUATEX Monoblock pumps are rugged, reliable and are built to withstand tough conditions like low voltages and high suction lifts. A very wide range of monoblocks to suit a variety of operating points are available.


 POWER RANGE2.0 TO 15.0 HP
 HEADMAXIMUM 24 M
 DISCHARGEMAXIMUM 4600 LPM

  • * Deep or shallow open well pumping with suction lift
  • * River and canal lift irrigation pumping
  • * Sprinkler and drip Irrigation systems
  • * Filter point pumping
  • * Industrial water supply and transfer
  • * Cooling water circulating systems
  • * Pressure boosting systems
