Products Details

DOMESTIC PRESSURE BOOSTING SYSTEM
  •  Description
  •  Application

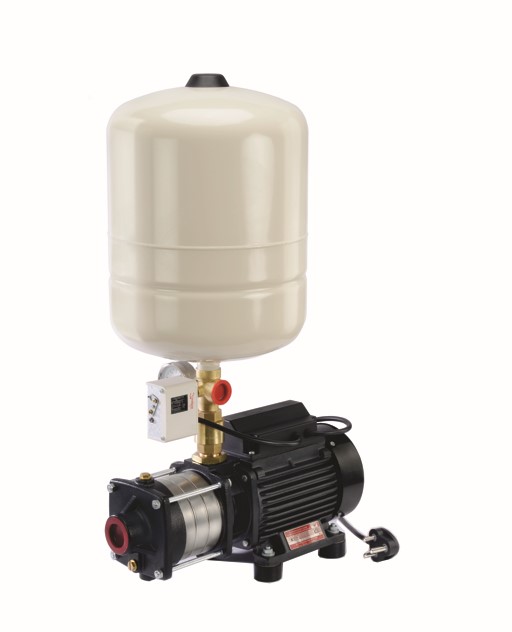

AQUATEX Domestic Pressure Booster System delivers water with uniform and constant pressure pumps in all Outlets – showers, taps, etc both on ground floor as well as top floor of the buildings. The Pressure switch monitors the pressure in the system and it will switch the pumpset ON and OFF automatically based on demand. The system is supplied with Horizontal Multistage Stainless Steel Pumps (AHS Series) or Shallow Well Jet Pumps (TSJ Series). The system consists of high quality pressure tank, pressure switch and other accessories.


 POWER RANGE0.5 TO 2.0 HP, 220V
 FLOW RATEUPTO 7.5 M3/HR
 OPERATING PRESSUREMAXIMUM 7 BAR

  • * Domestic Pressure Boosting applications
  • * Pressure Boosting Applications Multistory Buildings, Residential Apartments, Hotels etc
  • * Lawn sprinklers, Fountains and Small Farm irrigation.


  •  Description
  •  Application

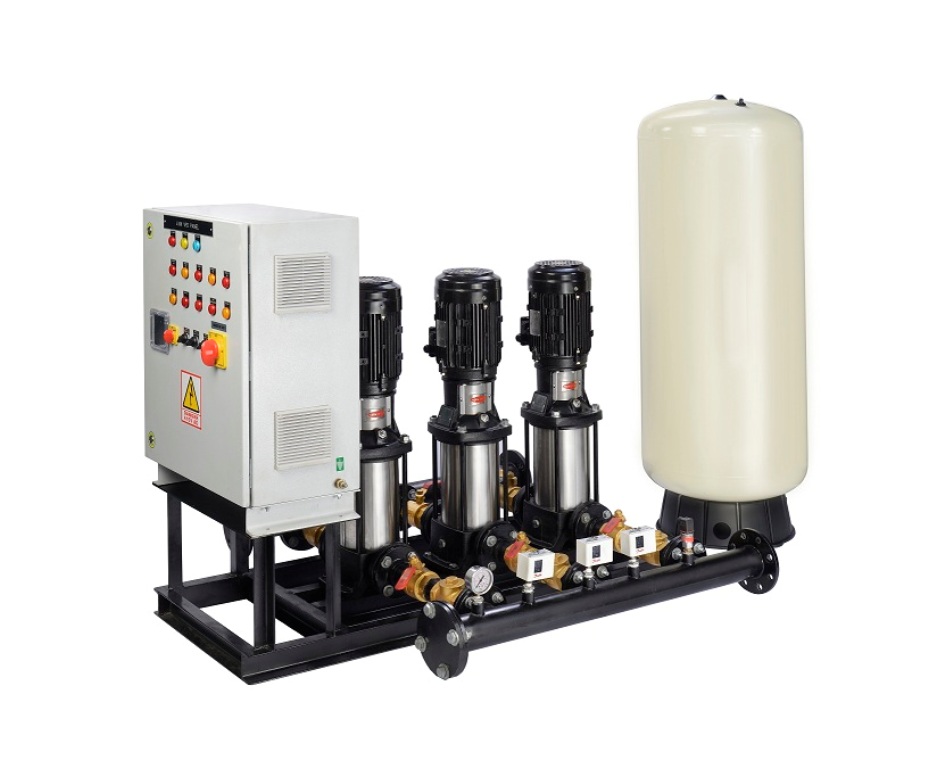

AQUATEX APS series Hydropneumatic System is designed to deliver water continuously at all outlets in all Floors of High Rise Apartments and Commercial Buildings with uniform pressure .The system is most ideal for High Rise Apartments and Buildings where the demand of water is variable and fitted with modern bathroom fittings like Jacuzzis, shower etc which require pressurized water for better functioning of the fitting. APS Hydropneumatic system are supplied with Variable speed and also Constant Speed Controller Panel.

 POWER RANGE0.5 TO 100.0 HP
 HEADMAXIMUM 200 M
 PRESSUREMAXIMUM 30 BAR

  • * Pressure Boosting water in High rise Apartments,High rise Commercial Buildings and Row Houses in Housing Projects.
  • * Pressurized Water Supply in Hotels, Hospitals and Hostels.
  • * Sprinkler Irrigation of Golf Courses, Sports Fields and Large Farms

HYDROPNEUMATIC PUMPING SYSTEM (APS)

RO PUMPS
  •  Description
  •  Application

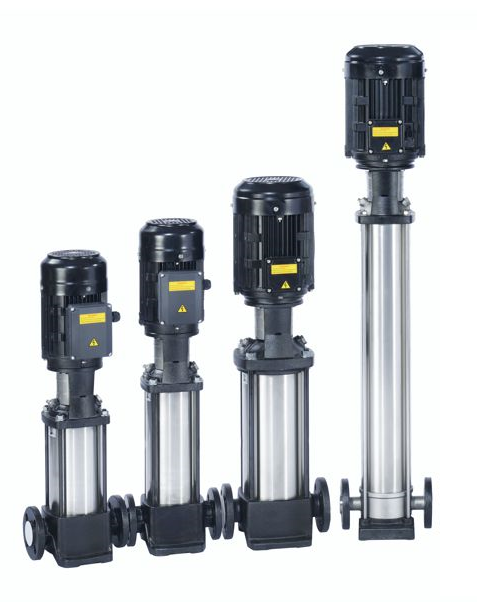

AQUATEX Vertical Multistage High Pressure Centrifugal In-line pumps (AV, AVI, AVS & AVN Series) are non self priming pumps of In-line Design. Flange or with victualic coupling with equally sized suction and discharge ports. Stage construction with Stainless Steel impellers, diffusers and outer tube, Pump shaft and Motor shaft are of lEC Standards. All wetted parts of pump are made of high grade corrosion resistant stainless steel.
These Pumps are driven by Totally Enclosed Fan Cooled (TEFC) high efficiency AC Induction motors.


 POWER RANGE0.5 TO 100.0 HP
 VOLTAGE340-440 V, 50Hz

220-240 V, 1 PHASE ( UPTO 2.0 HP)
 OPERATING PRESSURE MAXIMUM 30 BAR

  • PRESSURE BOOSTING AND WATER SUPPLY :
    Pressure Boosting in Residential Apartments, Commercial High rise Buildings, IT Parks, Hotels, Hospital and Colleges, Pressurized water supply in Process and Food Industry and for Fire Fighting and HVAC Systems.
  • WATER TREATMENT :
    Pumping water in Reverse osmosis Systems, Water Softeners and ultra·filtration systems.
  • IRRIGATION:
    Sprinkler Irrigation Systems for Golf Courses. Sports Stadiums and Agricultural fields.
  • INDUSTRY :
    Boiler feeding and Industrial Washing I Cleaning Systems.
