SINGLE PHASE OPENWELL PUMPSETS (ASM SP)
  •  Description
  •  Application

TEXMO SINGLE PHASE OPEN WELL SUBMERSIBLE PUMPSETS – ASM SP series offer the convenience of not having to change the position of the pump with changing water levels in the well. They are rugged and efficient.

  • Energy efficient motor
  • Low operating cost
  • Fitted with Carbon Bushes
  • Water lubricated motor with easily rewindable stator

  •  Power Range 1.0 to 7.5 HP
     Voltage Range 200V- 240V, AC Single phase , 50Hz
     Head Maximum 42M
     Discharge Maximum 700 LPM

  • * Suitable for water pumping from sump, water tank & fountains
  • * Water supply to commercial establishments like Hotels, Lodges and Hospitals
       Gardening and small farm Irrigations
  • * Home Pressure Boosting Applications

  •  Description
  •  Application

AQUATEX OPENWELL SUBMERSIBLE PUMPSETS offer the convenience of not having to change the position of the pump with changing water levels in the well. They are rugged and efficient. They are reliable and are built to withstand tough operating conditions like low voltages, etc.

  • Energy efficient motor
  • Low operating cost
  • Rigid cast iron motor frame, impeller and volute casing
  • Three phase water-filled submersible induction motor with easily rewindable stator
 Power Range 3.0 to 30.0 HP
 Head Maximum 90 m
 Discharge Maximum 2640 lpm

  • * Deep or shallow openwell pumping with suction lift
  • * River and canal lift irrigation pumping
  • * Pressure boosting applications.
  • * Public water supply  to large residence areas and multi storied apartments
  • * Water supply to commercial establishments like Hotels, Lodges and Hospitals etc
  • * Dewatering of mines
  • * Industrial water supply and transfer
  • * Fountains

THREE PHASE OPENWELL PUMPSETS (ASM/ASMN/ASMJ)
VERTICAL MULTISTAGE OPENWELL PUMPSETS (EAVM/EAVMJ)
  •  Description
  •  Application

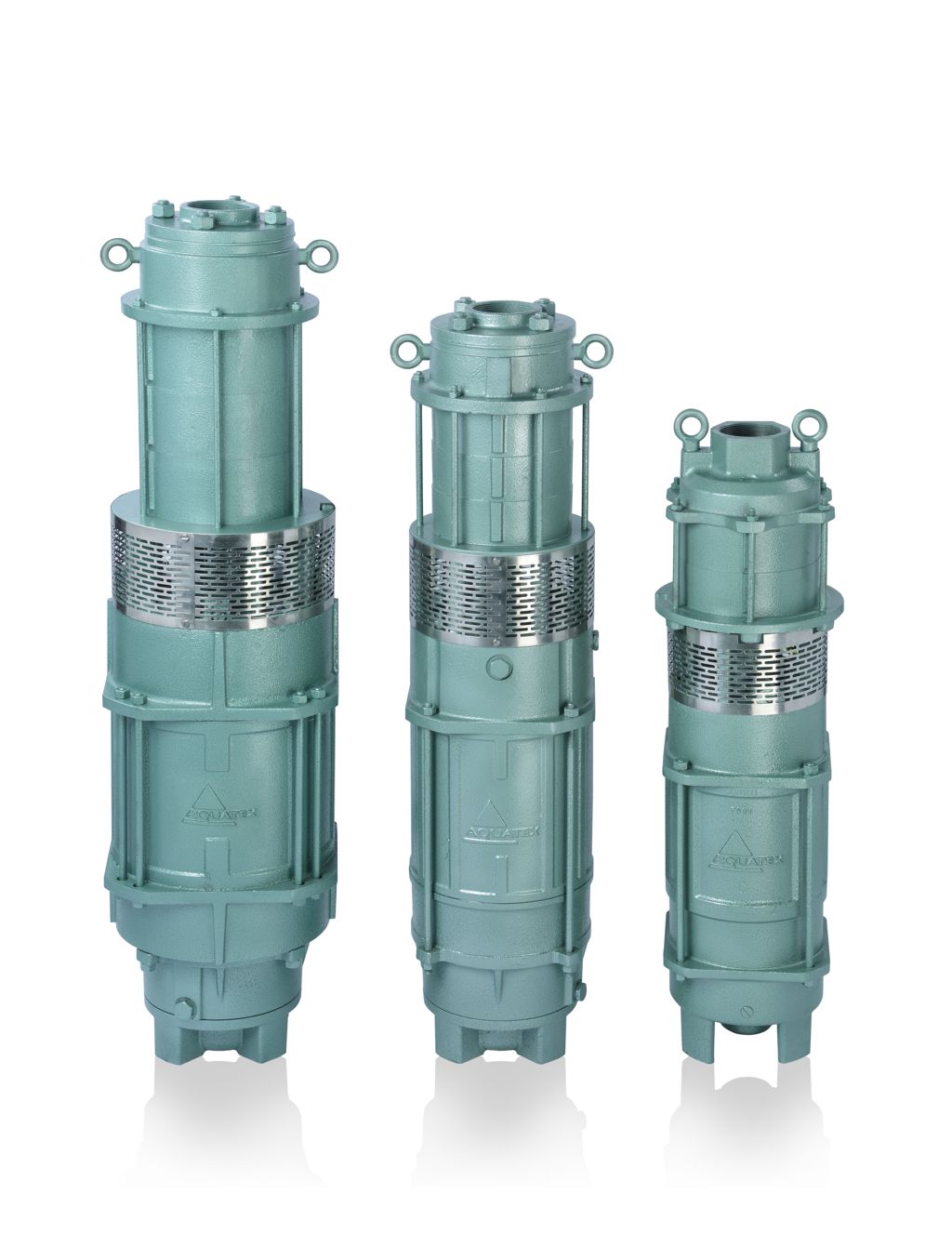

AQUATEX Vertical Open-well Submersible pumpsets are easy to install noise free, efficient and require minimum maintenance. A wide range of pumps are available to meet diverse operation requirements.

  • Energy Efficient motors
  • Low operating cost
  • Water lubricated motor with easily rewindable stator
  • Rigid cast iron motor frame, impeller and volute casing
 Power Range 3.0 to 20.0 HP
 Head Maximum 128 M
 Discharge Maximum 1140 LPM

  • Deep or shallow openwell pumping
  • * River and canal lift irrigation pumping.
  • * Irrigation systems for Agriculture including Drip and Sprinkler systems.
  • * Pressure boosting Applications
  • * Public water supply to large residence areas and multi storied apartments
  • * Water supply to commercial establishments like Hotels, Lodges and Hospitals
  • * Dewatering of mines
  • * Industrial water supply and transfer
